CE Zetron XP-3318II Combustible Gas Leakage Detector With Probe

Name: CE Zetron XP3318II Combustible Gas Leakage Detector With Probe
Brand: Zetron
Price: 100 USD

Brand Name : Zetron

Model Number : XP-3318II

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD 100/set / 900/set

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 1000 SET / week

Delivery Time : 1-10 work days

Packaging Details : 160*70*28mm

Product Name : Multi Gas Detector

Gas : VOC

Response Time : <30s

Protection Level : IP65

Exterior dimensions : 210*170*85mm (L*H*W)

Weight : 1.8(kg)

Contact Now

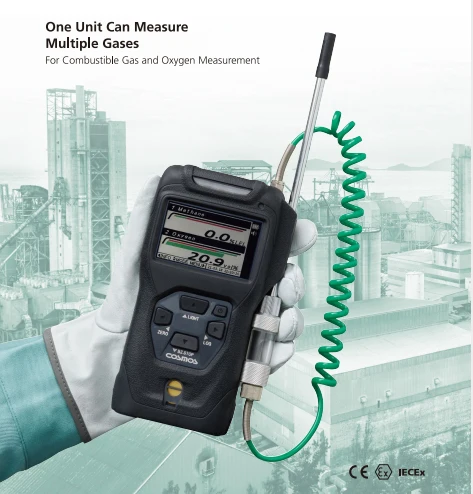

XP-3318II Multi Gas Detector

For daily checks and safety in plants, tanks, manholes, and tunnel construction.

FEATURE

* Convert to 32 types gas concentration
* Robust design Passed 7m drop test Waterproof and dustproof, IP67
* Wide range models Up to five combustible gases can be set as target gas (option) Enable to measure in "%LEL" and "ppm'Only for XP-3360lw and XP-3368I-WV

* Selectable power supply alkaline AA batteries / rechargeable nickel metal hydride AA batteries

* Timer and stopwatch function Only for XP-3318II and XP-3368II-W

PARAMETER

Sampling Method		Extractive
Alarm Method	Gas Alarm	Beeping with flashing red light and AL icon on the LCD
	Device Error	Beeping with flashing yellow light and error message on the LCD
Power Source		･Non-rechargeable alkaline AA battery x4: Toshiba LR6, Panasonic LR6X, Duracell MN1500, Energizer E91 or Varta 4106 ･Rechargeable nickel metal hydride AA battery x4: New Cosmos HR-3UTG
Operating Temperature/Humidity		-20 to 50℃ 95%RH. No condensation
Compliance*1		ATEX: Ex II 1G Ex ia da IIC T4 Ga1 IECEx: Ex ia da IIC T4 Ga1 CE (ATEX, RoHS and RE directives)
Ingress Protection		IP67
Main Features		Self-diagnosis (sensor error), Zero adjustment, Battery level indication, Flashlight, Peak-hold, LCD backlight, Audio alarm muting during gas alarm, Time indication, Alarm test, Alarm volume change, Audio muting
Dimensions		W91 x H164 x D44mm
Mass		Approx. 460g (including batteries)

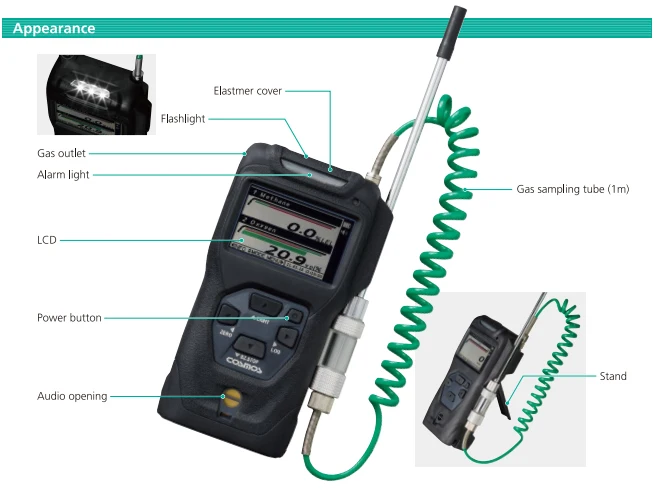

Accessaries		Gas sampling tube(1m), Shoulder strap, Drain filter, Filter element, Alkaline AA batteries(or Rechargeable nickel metal hydride AA batteries) x 4, Screen protector film x 3

Model	XP-3368II-W		XP-3368II		XP-3318II
Target Gas	Combustible gas /solvent vapor	Oxygen	Combustible gas /solvent vapor	Oxygen	Combustible gas /solvent vapor	Oxygen
Detection Principle	Catalytic	Galvanic cell	Catalytic	Galvanic cell	Catalytic	Galvanic cell
Mesuring Range (Reference Indication)	0.0–100.0%LEL (100.1–110.0%LEL) Enable to display in ppm.	0–25vol% (25.1–50.0vol%)	0–5000ppm or 0–10000ppm (5001–5500ppm or 10001–11000ppm)	0–25vol% (25.1–50.0vol%)	0–100%LEL (100.1–110.0%LEL)	0–25vol% (25.1–50.0vol%)
Accuracy*2	≤ 1000ppm : ±100ppm 1001ppmOther than above: ±5%F.S.	±0.3vol%	≤10%F.S. : ±2.5%F.S. >10%F.S. : ±5%F.S.	±0.3vol%	±5%F.S.	±0.3vol%
Resolution	0.1%LEL or 1ppm	0.1vol%	1ppm	0.1vol%	0.1%LEL	0.1vol%
Alarm Set Value	20%LEL	18vol%	250ppm or 500ppm	18vol%	20%LEL	18vol%
Response Time	T90: 30 seconds	ー	T90 : 30 seconds	ー	T90 : 30 seconds	ー
Continuous Operation Time*3	Approx. 15 hours
