Zetron Confined Space PGC Portable Gas Chromatograph For Methane / Ethane

Brand Name : Zetron

Model Number : Hydrogen Power

Certification : CE, ISO13485, ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000 set/month

Delivery Time : 3-7 days

Packaging Details : paper carton

Function : Gas Chromatograph

Detection Gas : Hydrogen, Methane, Ethane And Propane

Detection range : 50 Ppm Ethane (according To DVGW Regulations)

Work temperature : -20 to +50°C

Weight : Approx. 1 Kg

Warraty : 1 year

Contact Now

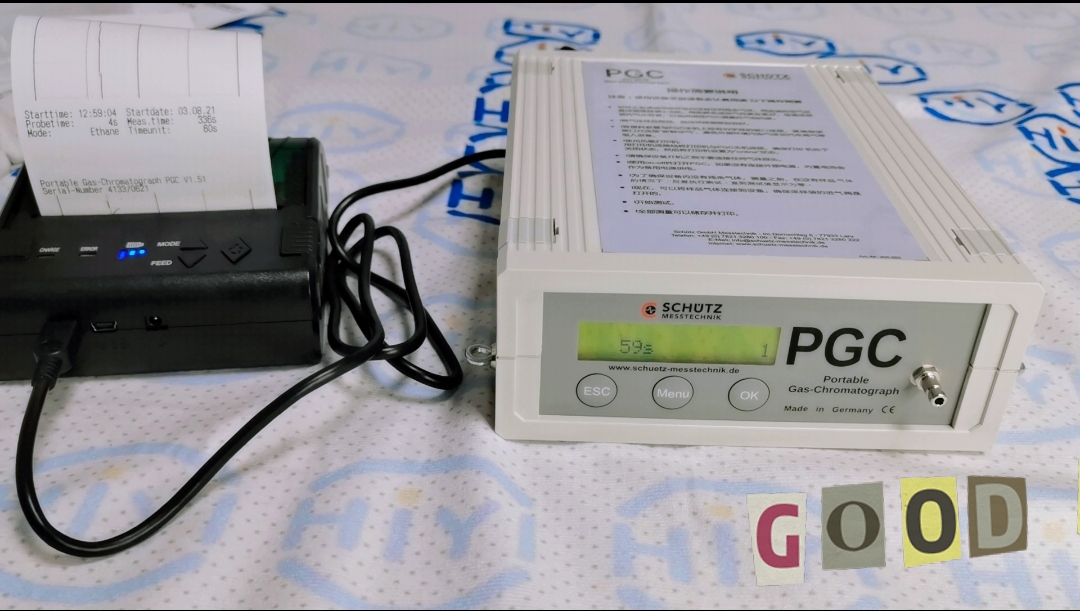

PGC Portable Gas Chromatograph

OVERVIEW

The Portable Gas Chromatograph from Schütz Messtechnik is an unprecedented solution for differentiating between natural gas, marsh gas and propane. It is designed for uncomplicated ethane detection on site. No tracer gas nor a second gas measurement device are required for use.
An immediate printout of the measurement results allows complete documentation and comparison. With the LCD display and the directly visible measured values, operation without a printer is also possible.
Following the simplicity of use, the gas chromatograph is also designed to be simply portable. The PGC is light, and rugged, making it very easy to carry on site.
Ethane is a component of natural gas; evidence of this gas is also evidence of natural gas. A lengthy gas analysis is normally required to prove beyond any doubt that the measured gas concentration is actually natural gas and not marsh gas. Due to gas sampling on site which is later to be measured in a laboratory, the traditional process is difficult and time consuming. These steps are completely eliminated with the Portable Gas Chromatograph. Measurement and sampling directly on site is easily possible - no further gas measuring device is required.
PARAMETER

Display
LCD display with 2 x 16 characters, illuminated
Measurement range
100ppm to 100 Vol.% Sample gas in the borehole
Gas
Hydrogen, methane, ethane and propane
Detection Limit
< 10 ppm Ethane (according to DVGW regulations)
Test Gas
50 ppm Ethane (according to DVGW regulations)
Temperature Range
0°C to 40°C
Protection Class
IP 54
Energy Supply
Battery (Lithium Ion Battery), 12V Car charger, 230V
Operation time
more than 200 measurements with one battery
Dimensions
158 x 63 x 229 mm
Weight
approx. 1 kg

Zetron Confined Space PGC Portable Gas Chromatograph For Methane / Ethane

APPLICATION
Confined Space, Combustible Detection, Oxygen Detection, Toxic Detection
Situation: Furniture, wallpaper, coating, paper making, pharmacy, health care, disinfection, chemical fertilizer, livestock farm, green household, agricultural production.


Tag: Multi-gas detector, Gas Chromatograph, Methane/Ethane gas monitor, Portable CH4 Chromatograph, OEM/ODM service
